A new look for everyday comfort.

What sits behind the screen?

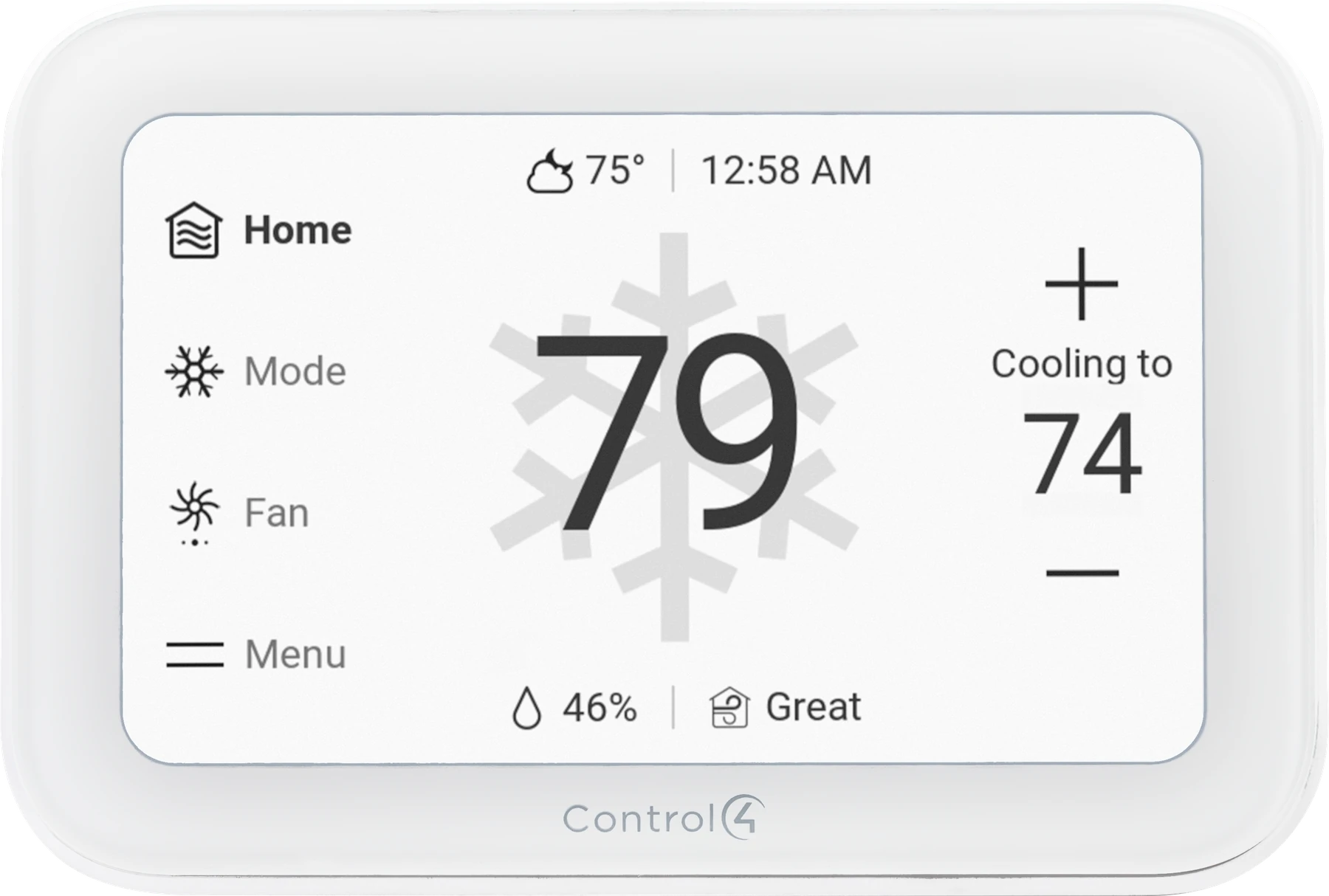

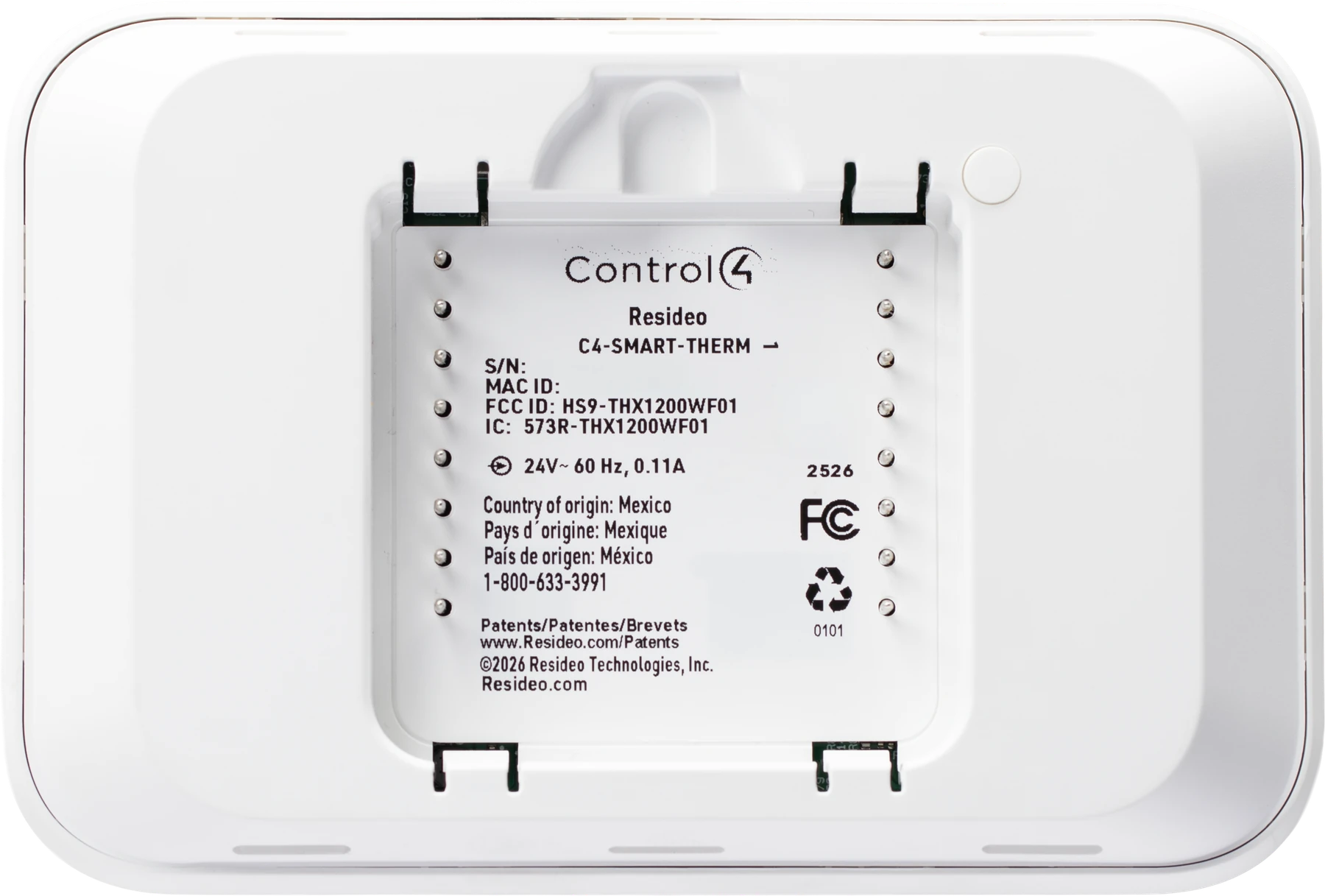

The front shows the controls you use every day. The rear shows a different part of the product: its recessed center, identification label and contact pins.

Replacing an existing thermostat? The installer still needs to check the wall base, wiring, wall opening and exact equipment compatibility. A rear product photo cannot establish that it will fit the old mounting or use the same connections. There is no need to remove your current thermostat to compare its appearance.

Both product photos retain the full manufacturer framing, without cropping. Tap either image to inspect it at a larger size. They are not photographs of a Denali Tech installation or a hands-on performance test; actual screen content can vary with configuration and software.

What is documented so far?

The official ENERGY STAR record for Control4 Smart Thermostat, model C4-SMART-THERM, lists the following features. That record is useful confirmation of the product family; it is not an installation manual or a list of everything available through Control4.

A 5-inch capacitive touchscreen and Wi-Fi

A larger touch interface is part of the new design. The connection method does not establish HVAC compatibility, power requirements or which functions work during an internet outage.

Humidity, occupancy and air-quality sensing

The record lists humidity sensing, an on-device occupancy sensor and a VOC air-quality sensor. A reading does not mean the thermostat can operate every humidifier or ventilation system. An air-quality indicator is not a substitute for a smoke or carbon-monoxide alarm.

Doorbell camera streaming

Streaming is listed as a feature, but the record does not name supported doorbells or describe calling and recording behavior. Confirm the exact combination before choosing it for that purpose; do not assume Chime Pro compatibility from the feature name alone.

ENERGY STAR certification

The listed model is certified. That does not guarantee a particular reduction in your utility bill, a local rebate or a payback period for your home.

Model naming matters: the certification uses C4-SMART-THERM; the ADI studio assets use C4-SMART-THERM-U. Confirm the supplied model and its current documentation before ordering. Features listed for the family are not a promise that every function is exposed in every Control4 project.

Will it fit your home?

A good-looking thermostat is only a good upgrade if it preserves the way your heating and cooling system needs to run. Before committing, have the HVAC contractor and Control4 dealer confirm these points together.

1. Your exact equipment. Identify the furnace, heat pump, air handler, boiler and any zone panel. Ask for a compatibility check against the new thermostat's installation documentation, including staging and accessories.
2. The existing wiring and power. Do not assume a matching wire color, familiar terminal label or similar wall plate proves it is a direct replacement. Wiring requirements need to be checked for the exact model.
3. The Control4 project. Confirm the controller, supported software, driver and account requirements. A new screen alone does not establish support for an older system.
4. The functions you actually use. Review schedules, temporary holds, fan behavior and any humidity controls. Ask which functions are available at the wall and which are available through your Control4 interfaces.
5. The installation details. Check the wall opening, any marks left by the old unit, viewing height and access for future service. Confirm availability, accessories and total installed cost before scheduling.

Upgrade for a reason. Keep what works.

If you upgrade, make the handoff practical: show everyone how to change the temperature, cancel a temporary hold and recognize a schedule. Have the installer explain what remains available when Wi-Fi, internet access or the Control4 controller is unavailable. Those are separate conditions and should not be treated as the same outage.
