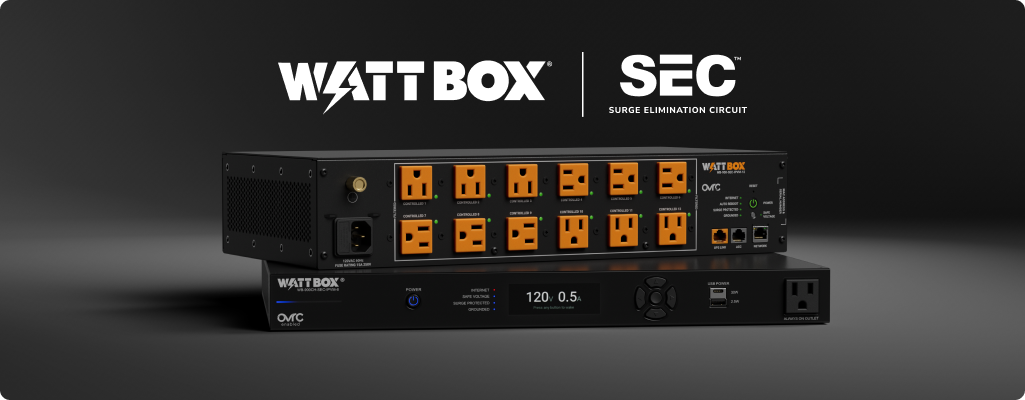

WattBox 900: power protection built for a serviceable smart home
The equipment rack is where the network, automation, cameras and entertainment systems meet. WattBox 900 adds long-life surge protection, outlet-by-outlet visibility and a practical way for Denali Tech to solve many power-related problems remotely.
12individually controlled and metered outlets
2Urack space for WB-900-SEC-IPVM-12
SECnon-sacrificial line-to-neutral protection
6 yearsmanufacturer limited warranty
First, understand what you are buying
This is not a glamorous device you touch every day. Its value appears when equipment locks up, power becomes unstable or a technician needs to diagnose the rack without making an unnecessary trip.
It is not battery backup by itself. A compatible WattBox UPS is added when the system needs runtime during an outage.
The rack can report abnormal power, restart one frozen component and give the service team better information before a visit.
The hardware

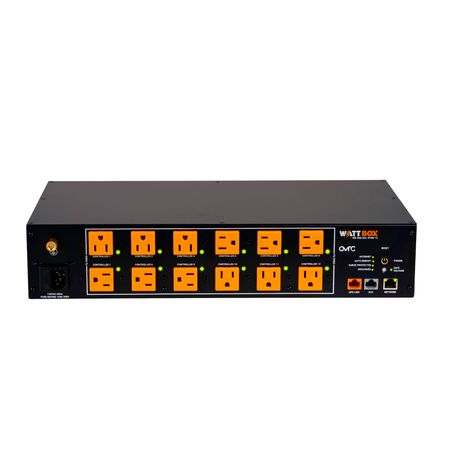

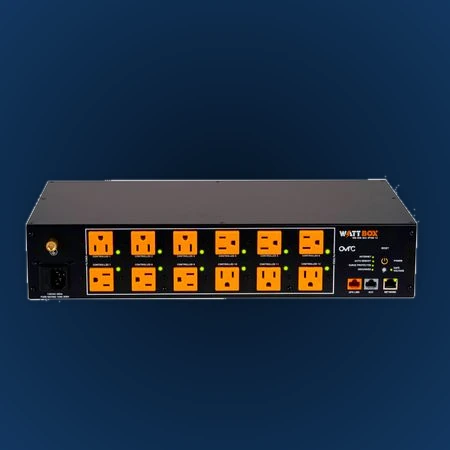

One unit gives every device a known place
Each connected component can be named in OvrC—router, network switch, Control4 controller, camera recorder or streaming player. A technician can then see what is drawing power and restart the correct outlet without interrupting the whole rack.
- 12 IP-controllable outlets with individual and whole-device metering
- 120V input, 15A fuse and 12A UL current rating
- Safe Voltage support with an official 90V–136V range
- Compact 8.39-inch depth, while still using 2U of rack height
ModelWB-900-SEC-IPVM-12
Outlets12 × NEMA 5-15R
Dimensions17.32 × 3.46 × 8.39 in.
ControlOvrC, IP/Telnet API and supported drivers
Protection that stays on duty

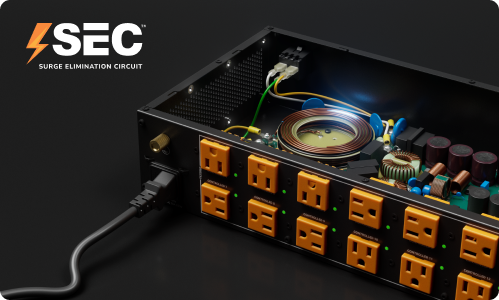

What SEC changes
Traditional surge components can wear as they absorb electrical events. The 900 Series combines non-sacrificial Surge Elimination Circuit protection on line-to-neutral with additional MOV protection modes. The goal is consistent protection over the life of the installed system—not a power strip that quietly becomes a weak link.
This still does not make the rack immune to every electrical problem. Grounding, circuit quality, installation and the rest of the power plan remain important.

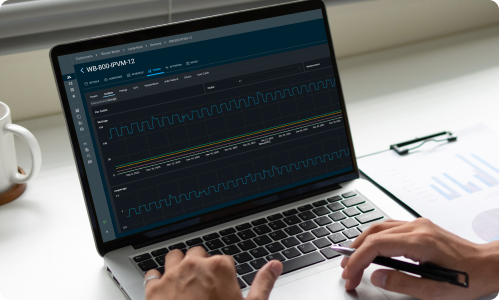

What better service looks like day to day

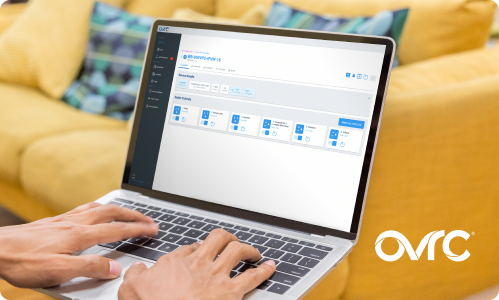

The most useful WattBox 900 features happen in software. The system records behavior, alerts the service team and makes a controlled reset possible without asking a homeowner to find the correct plug.
OvrC sees an alert, lost device or abnormal power condition.
The technician checks the device, outlet history and network before acting.
Only the affected outlet is restarted, manually or through an approved automation.
The service record is clearer if a site visit or replacement is truly needed.
WattBox 900, 800, 820 or a UPS?
These products solve different parts of the power plan. The right choice comes from the actual equipment list, circuit, rack space and uptime requirement—not simply choosing the newest or largest number.
| Choice | Main job | Typical reason to choose it | Important planning note |
|---|---|---|---|
| WattBox 900 SEC | Long-life managed protection and deeper outlet-level visibility | A central 15A-class smart-home rack where serviceability matters | The 12-outlet model uses 2U and has a 12A UL current rating |
| WattBox 800 | Managed 15A power in several compact, rack and vertical forms | Existing designs that need a different outlet count or mounting format | Choose the exact form factor from the rack and device list |
| WattBox 820 | Managed power for a properly designed 20A system | Higher-current racks with the matching branch circuit and receptacle | A 20A model is not an upgrade unless the electrical and load plan require it |
| WattBox UPS | Temporary battery runtime and controlled load shedding | Keeping network and control equipment alive through short outages | Runtime depends on measured watts; it is often paired with managed WattBox power |
Denali’s rule: protect and control the rack first; add battery backup when the client has a real uptime goal. We separate critical network and automation loads from amplifiers and other high-draw equipment so useful runtime is not wasted.

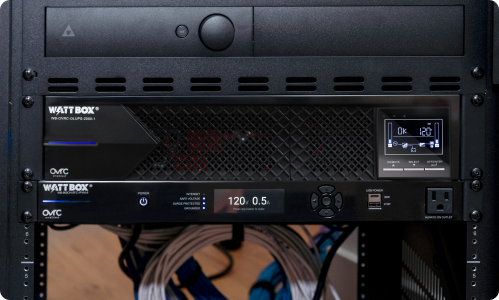

Optional battery backup
What happens when the utility power goes out?
Pairing the 900 Series with a compatible OvrC UPS adds battery health alerts, on-battery notifications, remote alarm silencing and smart load shedding. The system can keep the modem, router, switch and automation controller online while shutting down less important loads first.
- Battery runtime is calculated from the real connected wattage
- Critical and noncritical outlets are identified before commissioning
- A UPS bridges short outages; it does not replace a generator for long events
Is the 900 Series right for your project?
It makes sense when…
- You have a central rack with network, control, surveillance or AV equipment
- You want Denali to diagnose and restart supported devices remotely
- Long-life surge protection and a six-year warranty matter
- You want outlet-level power history instead of simple on/off control
Choose another path when…
- You only need power for one TV or a very small cabinet
- The system requires a true 20A design
- Your main requirement is battery runtime rather than managed power
- The rack plan cannot provide 2U plus appropriate cable and service space
A simple way to explain it
“WattBox 900 gives the rack a durable protection layer and gives our service team a window into every connected device. If something freezes, we can restart the right outlet instead of asking you to unplug the entire system.”
Questions homeowners ask
Is WattBox 900 a UPS?
No. It provides managed power, protection, metering and remote outlet control. A compatible UPS is a separate component that adds temporary battery runtime.
Can I restart equipment myself?

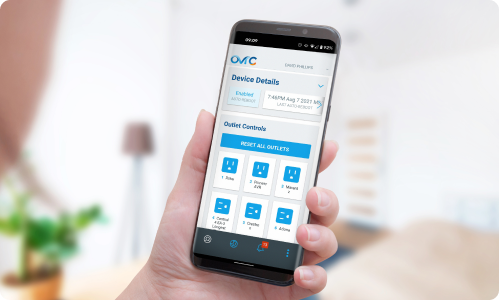

Denali can provide selected device resets and approved macros in the OvrC Connect customer app. Critical equipment should stay protected from accidental resets.
How much rack space does it need?

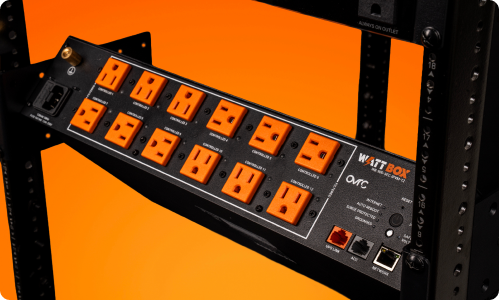

The WB-900-SEC-IPVM-12 is officially listed as 2U, approximately 17.32 inches wide, 3.46 inches high and 8.39 inches deep. The rack also needs sensible cable routing, ventilation and service access.
Does it work with Control4 or URC?
The 900 Series supports IP and Telnet APIs and is designed to integrate with professional control platforms including Control4 and URC. The final driver and programming scope are confirmed during system design.
Product specifications and authorized imagery reviewed from current ADI/Snap One materials on August 2, 2026. Models, accessories and compatibility can change; Denali Tech verifies the final bill of materials before ordering.
Want a rack that is easier to protect and support?
Send us a rack photo, equipment list and the problems you are experiencing. Denali Tech can map the power conditioner, outlet sequence, remote support plan and optional UPS around the real system.
