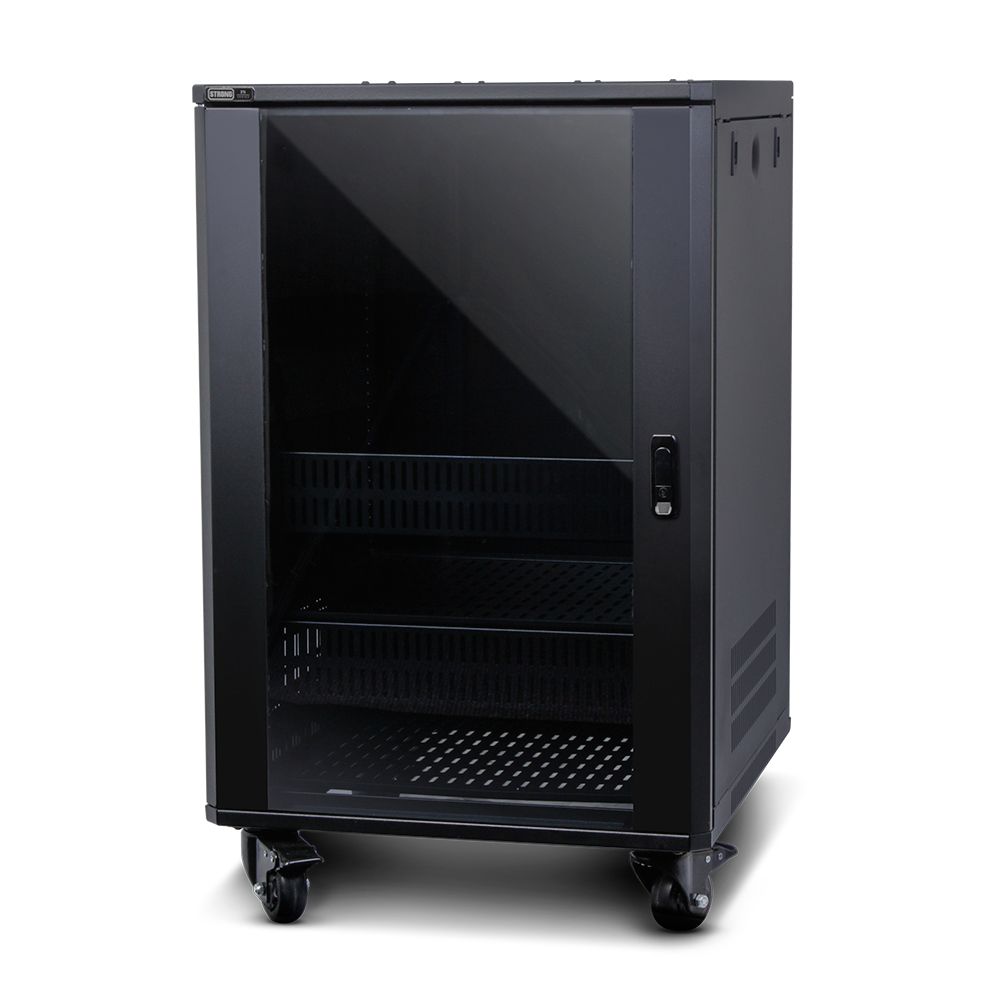

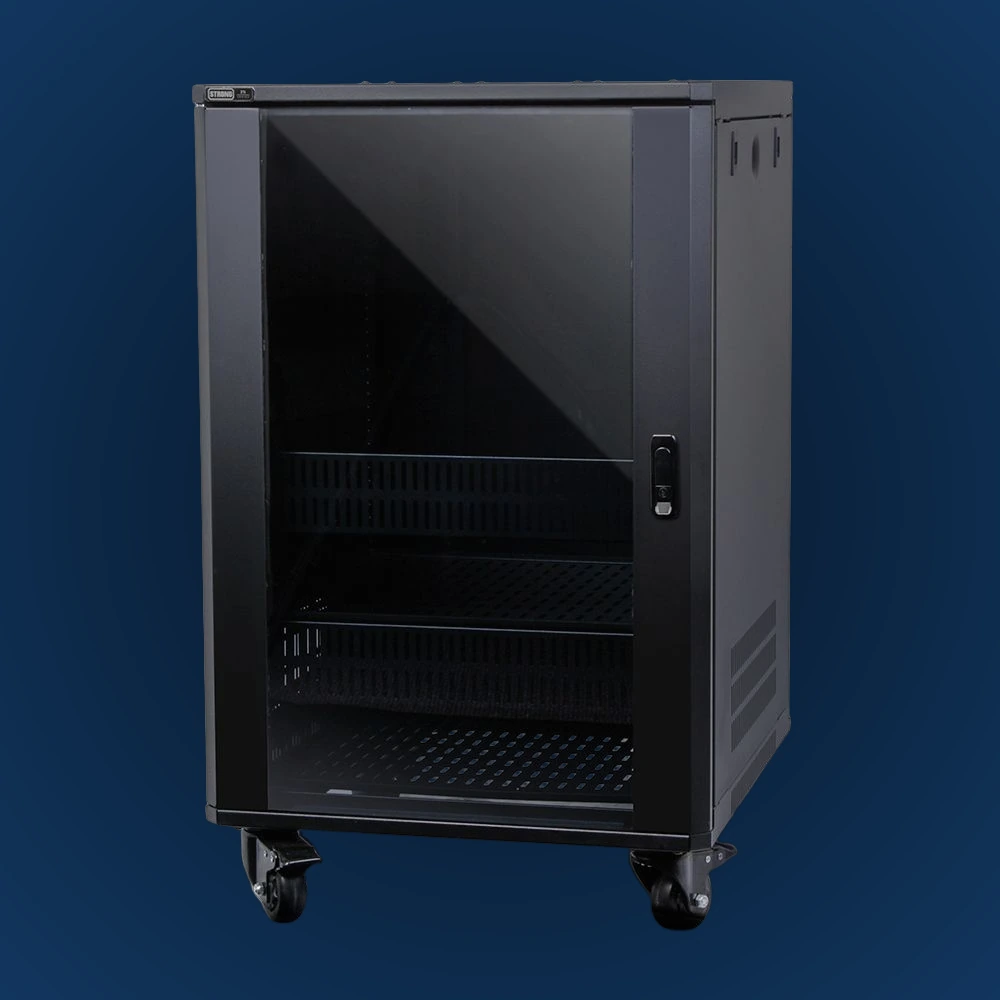

15U — compact
26.25 in. of usable rail height
Best starting point for a focused network, control, streaming, or small AV system.
Every SR-FS size, one consistent view
These high-resolution product images use the same clean studio angle, making the rack sizes easy to compare side by side. One rack unit (1U) equals 1.75 inches of usable rail space; exterior cabinet height is greater because of the top, base and casters.

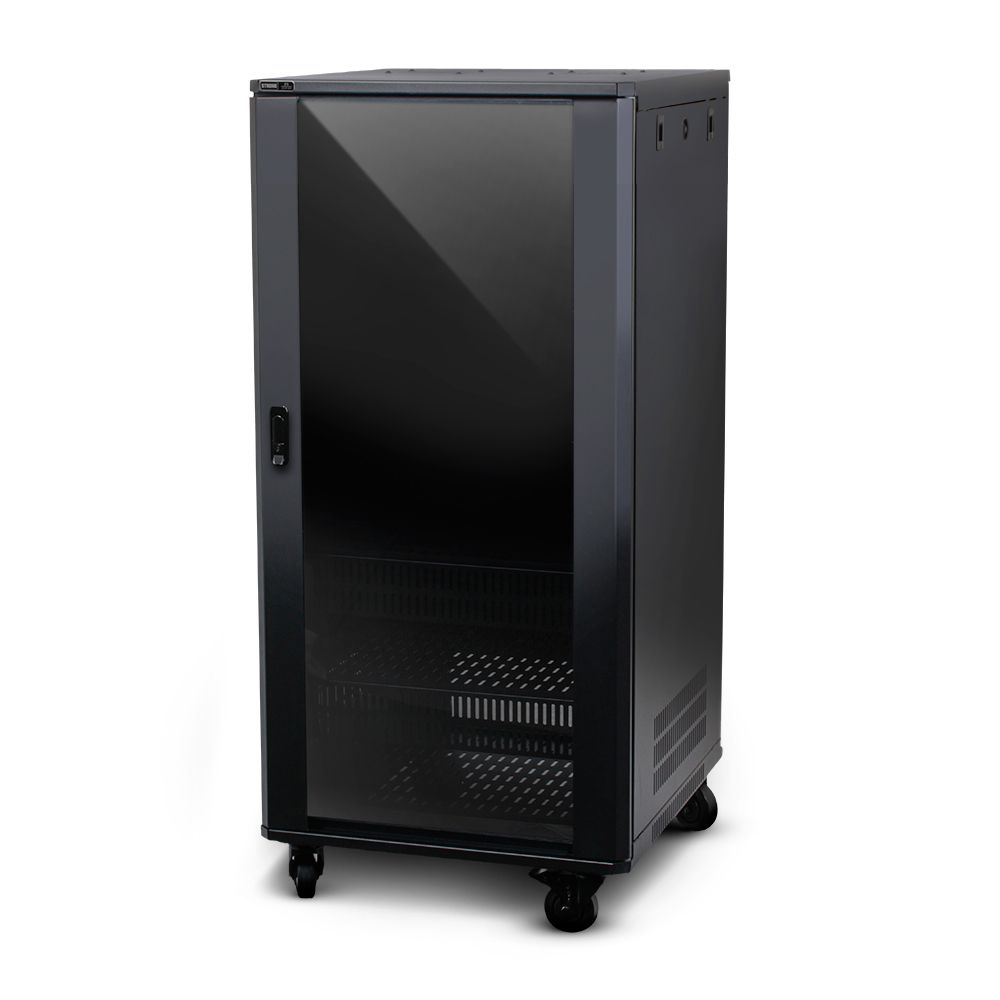

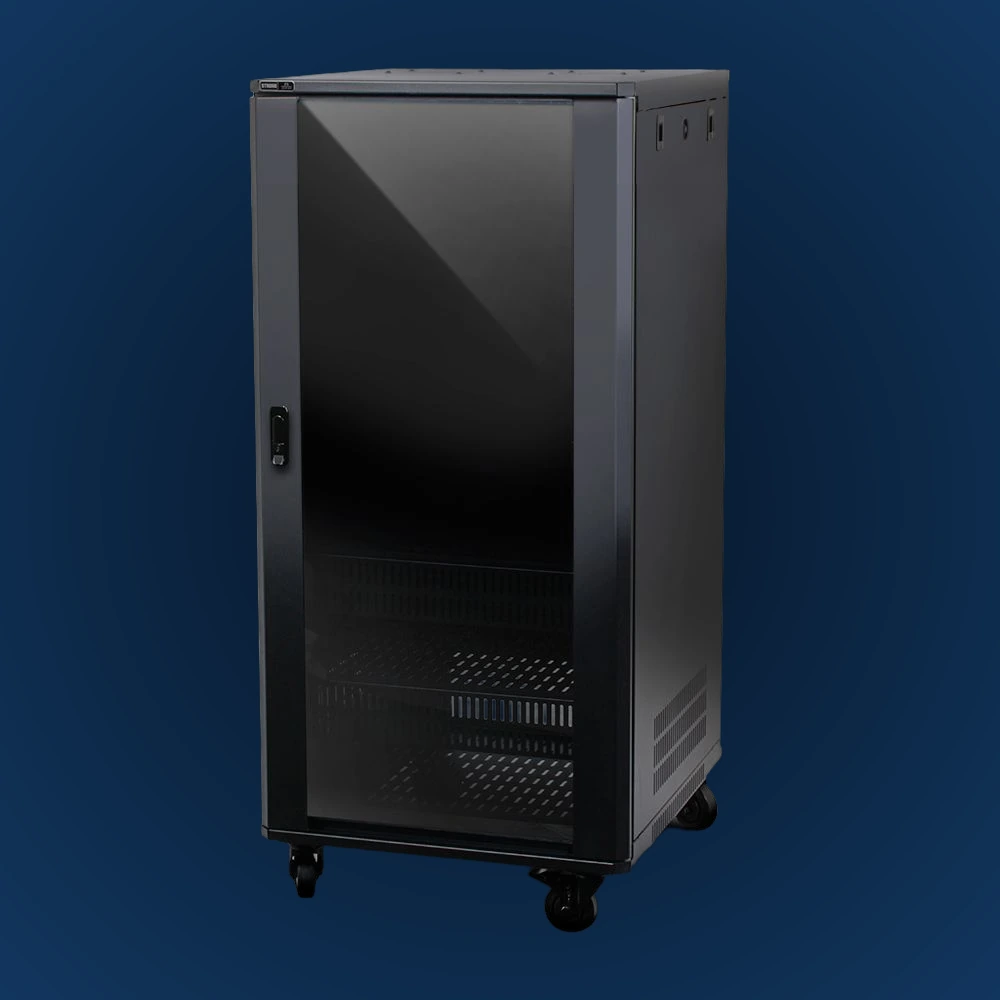

21U — small whole-home
36.75 in. of usable rail height
Useful when network, managed power, control, and a modest AV system share one cabinet.

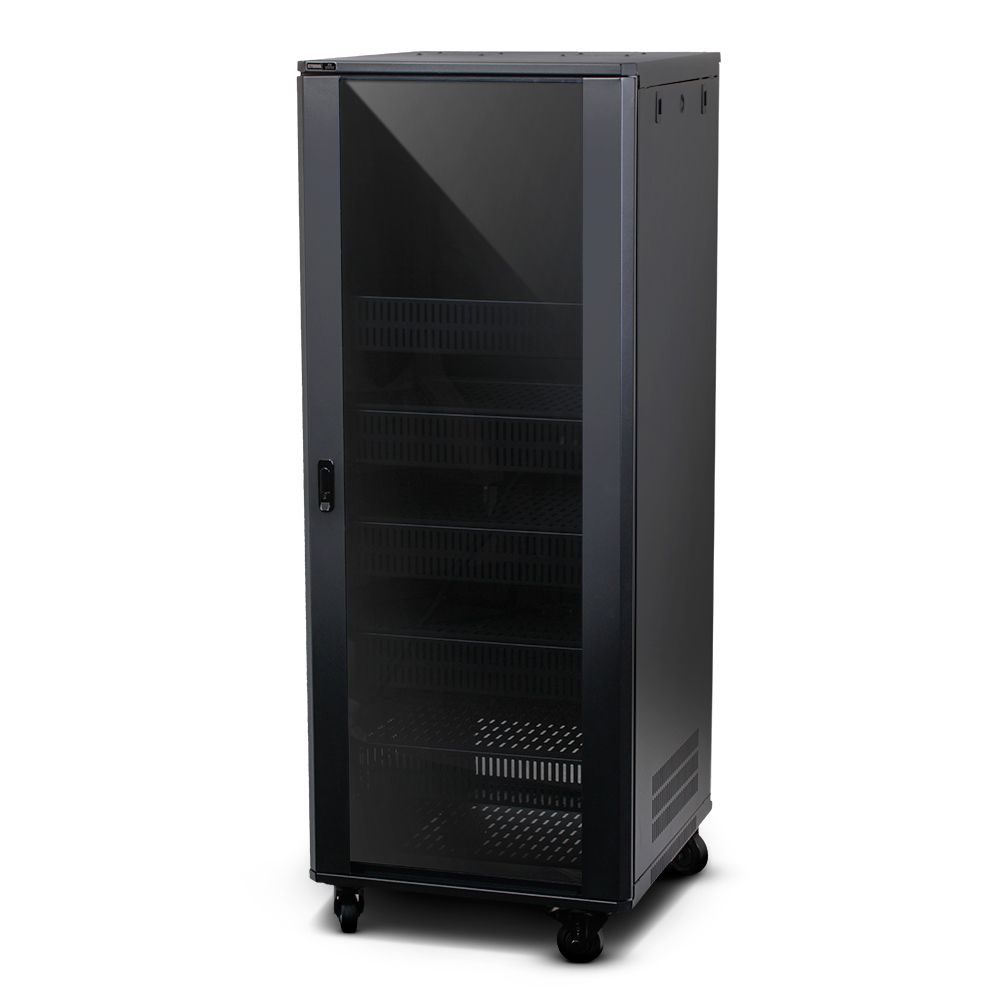

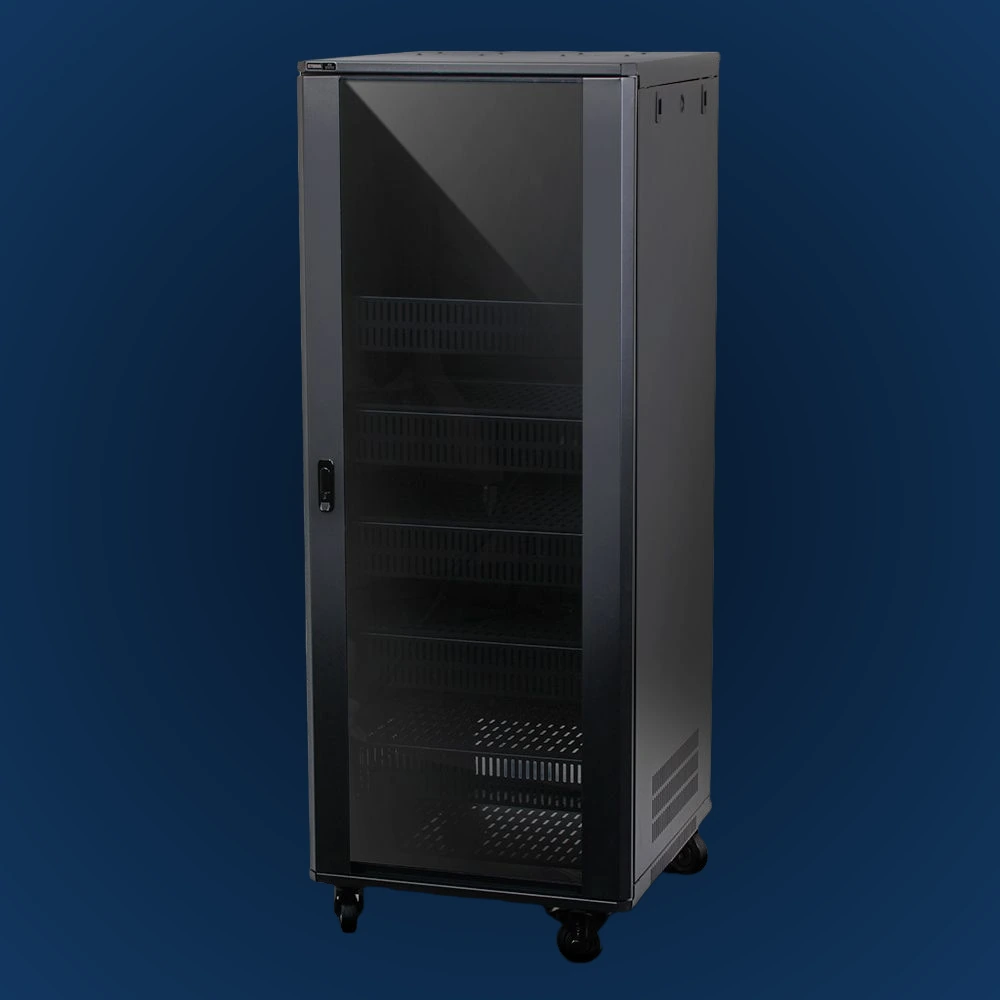

27U — balanced
47.25 in. of usable rail height
A practical middle choice for distributed audio, networking, control, and planned growth.

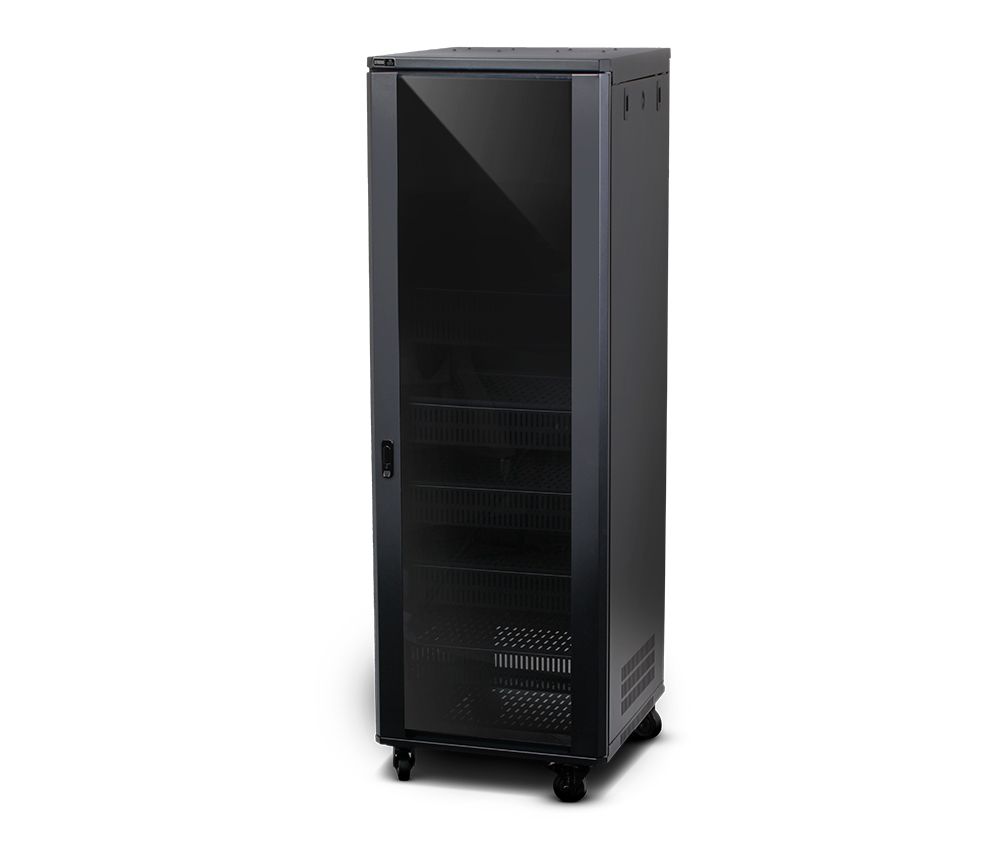

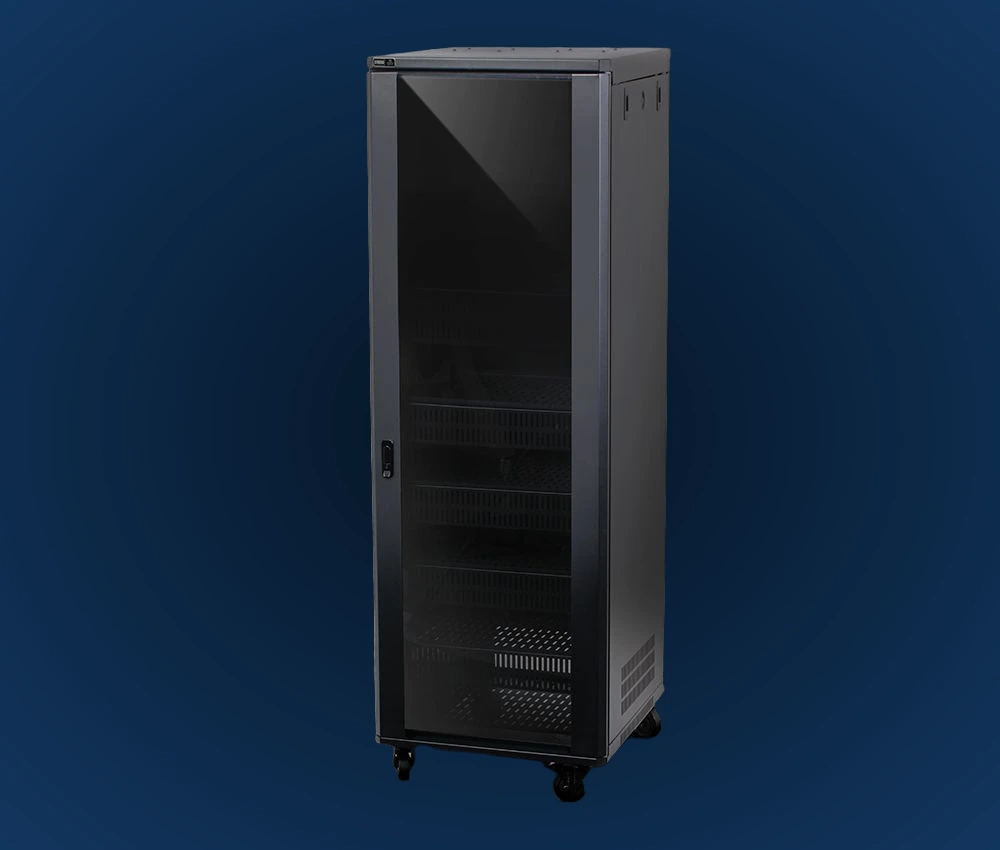

35U — large system
61.25 in. of usable rail height
More room for amplifiers, AV distribution, shelves, ventilation, and future equipment.

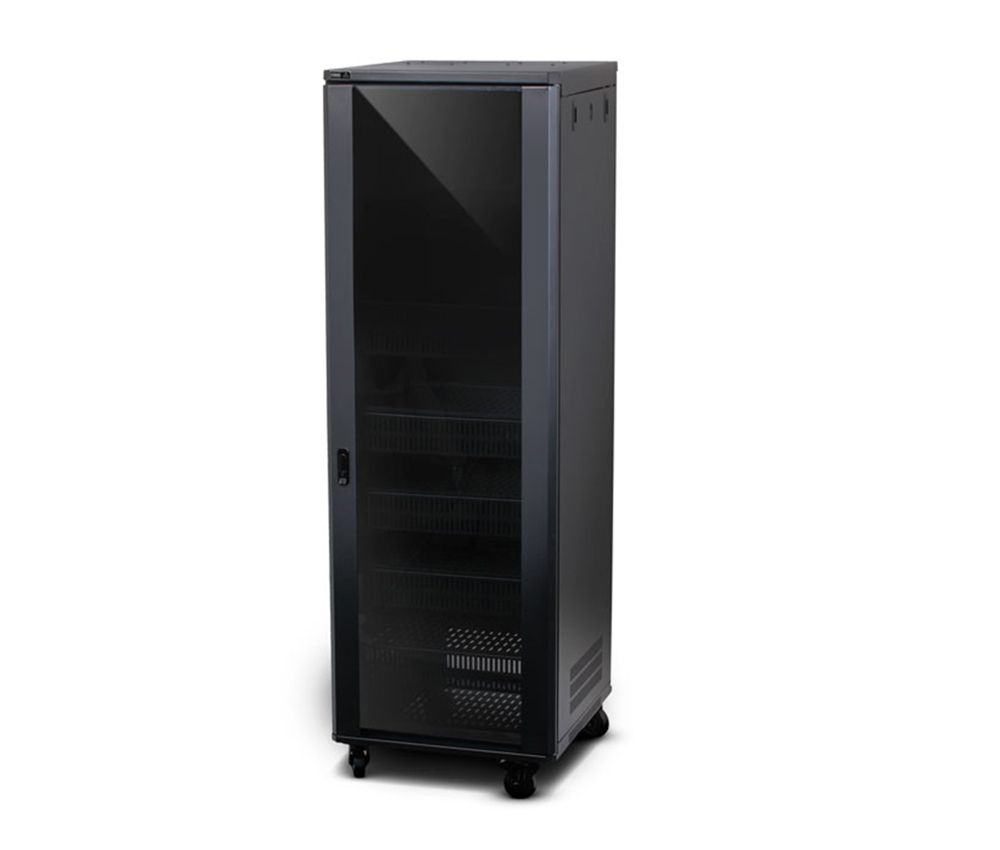

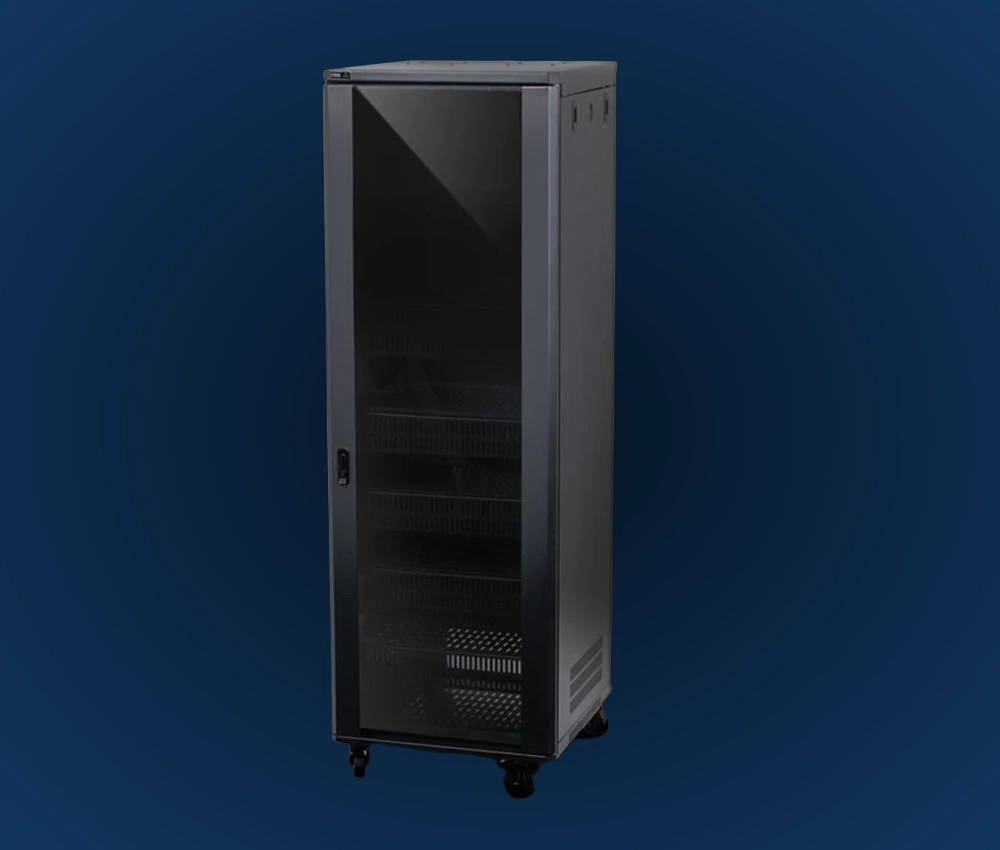

42U — full height
73.5 in. of usable rail height
The maximum-capacity choice for extensive whole-home technology and the cleanest service layout.
Use these images to compare cabinet scale, then confirm the exact equipment list, rack depth, ventilation, service clearance, and current product availability before ordering.
What each size usually means
These are practical starting points for comparing rack sizes. The final selection still comes from the equipment schedule and the rack’s usable depth.
15U
Focused system
Compact, but still large enough to organize a deliberate network or small AV equipment list.
21U
Combined core
A stronger fit when networking, managed power, automation, and several AV components live together.
27U
Balanced growth
A useful middle size that leaves more breathing room for layout, cooling, and future changes.
35U
Large system
Designed for a more extensive equipment schedule with amplification, distribution, and support hardware.
42U
Full height
Maximum SR-FS capacity for broad whole-home systems and the cleanest separation between system layers.
SR-FS rack comparison
| Model | Usable rack capacity | Published depth | Good starting fit |
|---|---|---|---|
| SR-FS 15U | 15U / 26.25 in. rail space | 24 in. | Focused network or small AV core |
| SR-FS 21U | 21U / 36.75 in. rail space | 24 in. | Network, control, power, and modest AV |
| SR-FS 27U | 27U / 47.25 in. rail space | 24 in. | Balanced whole-home system with growth room |
| SR-FS 35U | 35U / 61.25 in. rail space | 24 in. | Large equipment schedule and amplification |
| SR-FS 42U | 42U / 73.5 in. rail space | 24 in. | Full-height capacity and maximum layout freedom |
Official references: Strong floor-standing rack families and the SR-FS 15U–27U data sheet. Product imagery and catalog details reviewed August 15, 2026. Confirm the exact current SKU, usable depth, load rating, accessories, cooling, and service clearance before ordering.
How Denali Tech sizes a rack
List every device
Document each component, its rack height, chassis depth, connections and ventilation requirements.
Add the support parts
Include shelves, drawers, patch panels, managed power, UPS equipment, cooling and cable management.
Plan the empty space
Reserve practical growth room instead of delivering a cabinet that is completely full on day one.
Check the real room
Confirm exterior dimensions, doorway access, service clearance, power, heat and cable entry before ordering.
Do not size by height alone. A shallow 21U rack may not accept a deep receiver, amplifier or UPS once rear cables and bend radius are included. Depth, ventilation and service access are just as important as U-space.
