SANUS CFR2127 AV rack
A 55-inch cabinet that gives a serious theater or smart-home system more room to breathe, organize, and grow—when the equipment plan actually calls for it.

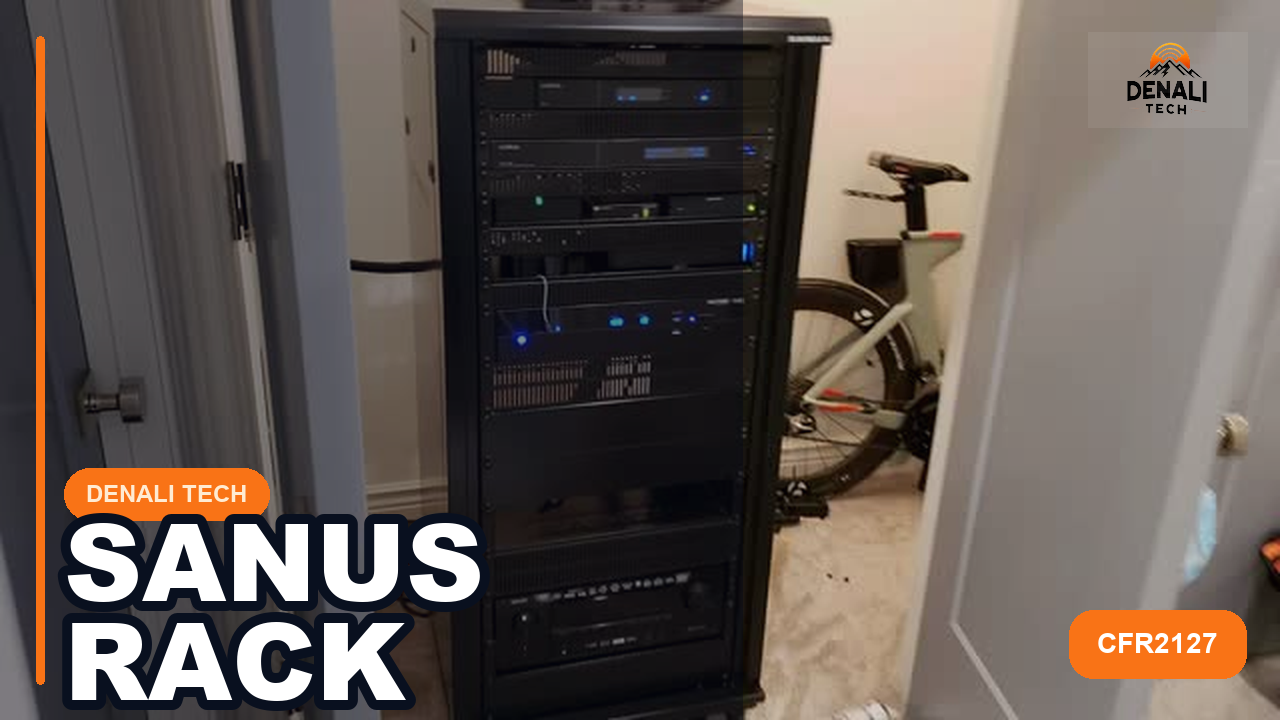

A real CFR2127, loaded and operating
The video shows the finished rack in a real home. The equipment mix is specific to that project; another home may need a different rack size and layout.
More room without jumping to a full-height rack
The CFR2127 sits between compact racks and the much taller 36U or 44U cabinets used for larger systems. Its 27 rack spaces can make sense when a project combines theater electronics with networking, control, audio distribution, surveillance recording, or protected power. The extra room is valuable only when it is planned—unused height should support airflow, service access, and future growth rather than encourage random equipment stacking.
What the rack itself contributes
Quick-release access
SANUS lists removable side and rear panels, giving a technician a clearer path to wiring and connections than a cabinet that can be reached only from the front.
Cooling flexibility
Top and bottom venting plus configurable 3U openings provide options for passive ventilation or compatible active cooling. The final cooling plan still depends on the installed equipment and room temperature.
Stable positioning
Swivel casters help during placement and service; adjustable feet provide stable final positioning. Moving a loaded rack requires care and compliance with the installation manual.
Shelves and blanking
The rack is supplied preassembled with vented shelves and blanking panels. Shelves support non-rack-mount equipment, while blanking panels can improve organization and airflow control.

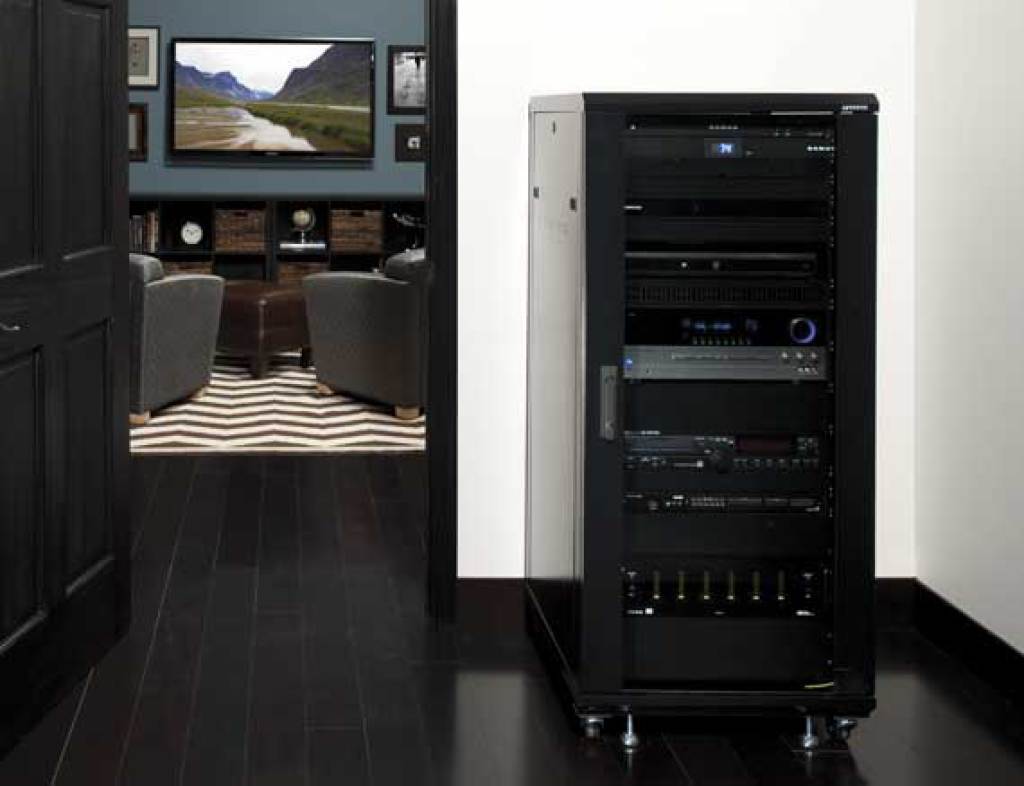

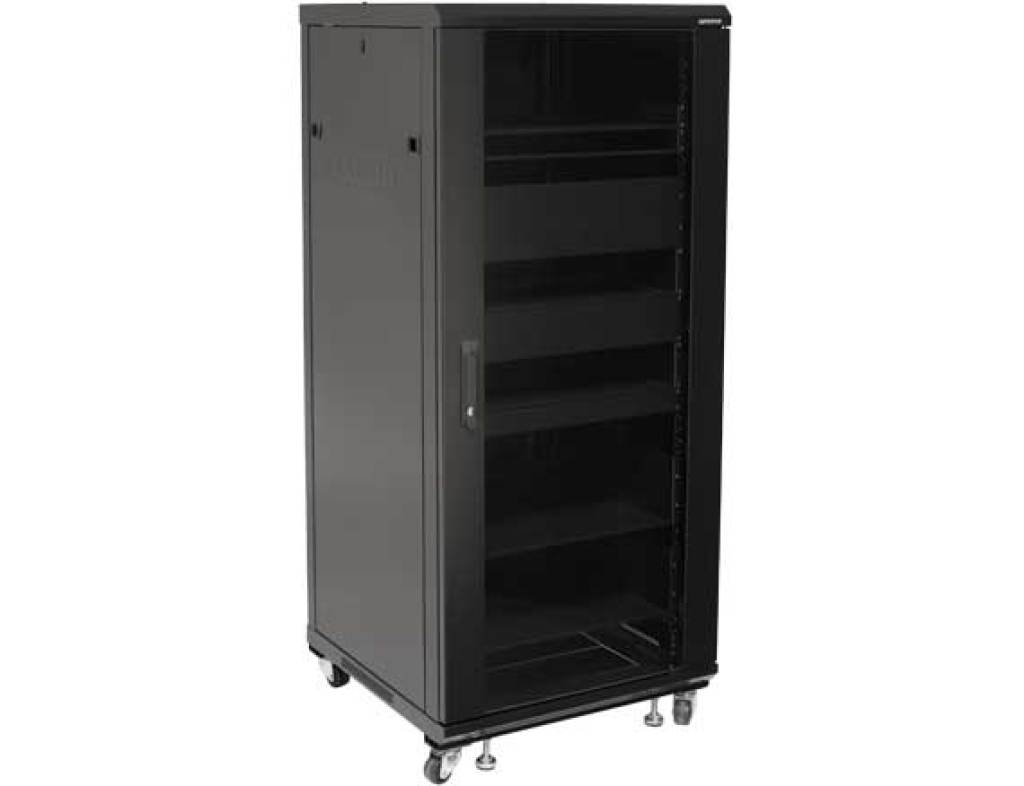

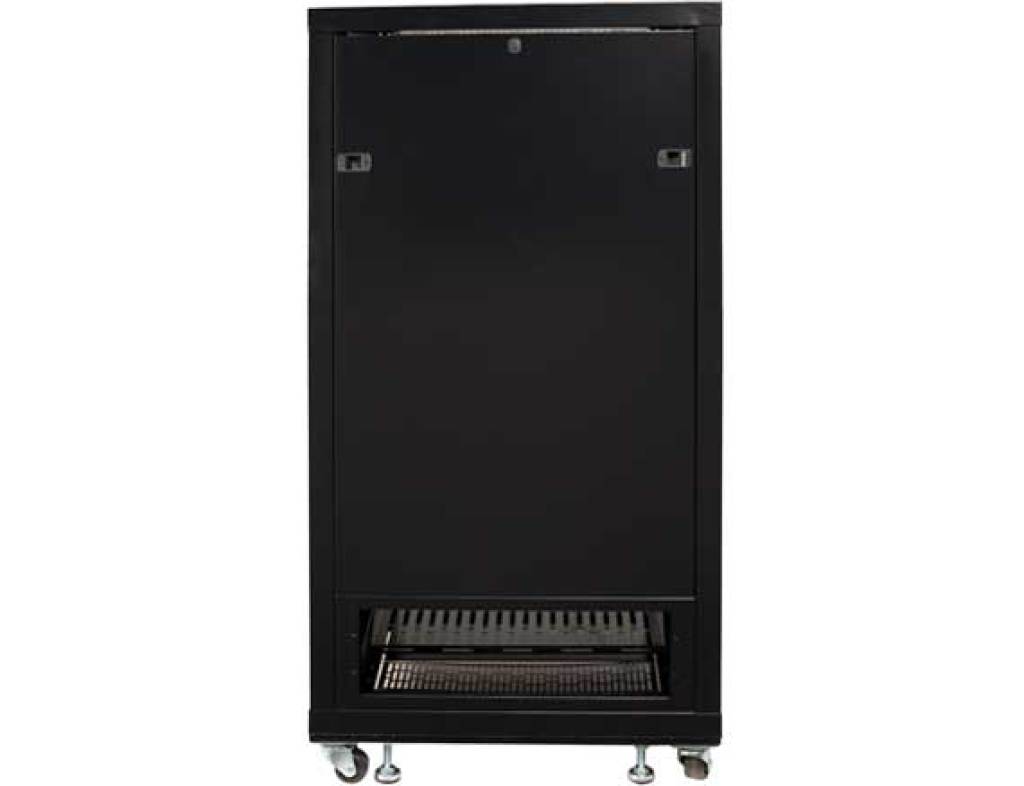

Front, rear, and in-room scale
These manufacturer product views show the empty cabinet, the rear access panel, and how the rack can look beside a theater room. The blue background treatment keeps the black cabinet edges visible on this page.
15U, 18U, or 27U?
Compact
Best considered for a focused system with a tightly defined equipment list and limited expansion. Every shelf and ventilation space must be planned.
See the 15U projectFocused plus room
A useful middle step for some theater or smart-home systems that need more flexibility but not a tall floor rack.
See the 18U buildMulti-system capacity
More appropriate when theater equipment shares the location with networking, control, audio, video, cameras, or additional protected power.
Check the room firstConfirm the system and the room
- List every rack-mount component, shelf device, blanking panel, power device, and cooling accessory.
- Confirm the usable equipment depth—not just the outside cabinet depth—and allow room for connectors and cable bends.
- Measure the full path into the room, including doors, stairs, turns, trim, and finished flooring.
- Verify floor capacity, electrical requirements, grounding, ventilation, ambient temperature, and service clearance.
- Plan where network, speaker, camera, control, and video cables enter the rack and how they will be supported.
- Reserve sensible capacity for documented future needs without oversizing the rack simply to fill space.
Manufacturer sources
Specifications and cabinet features were checked against the SANUS CFR2127 product page, the SANUS Component Series rack comparison, and the CFR2100 installation manual. Product photos in the gallery are SANUS manufacturer images; the hero and video show Denali Tech’s project.
Reviewed August 17, 2026. Confirm current availability, replacement parts, accessory compatibility, load limits, and installation requirements before specifying an older or existing CFR2127.
